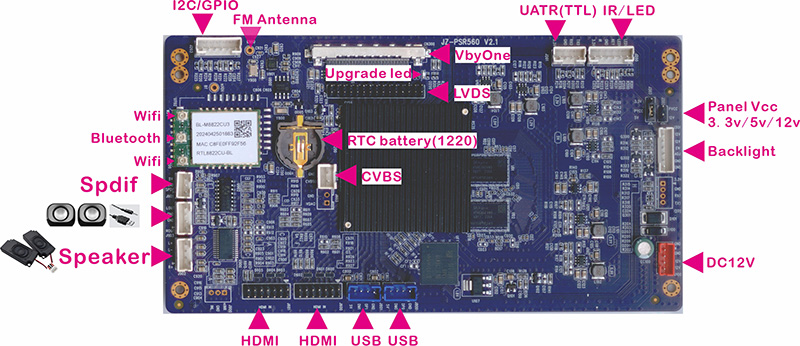

MODEL：JZ-PSR560 Android LCD TV BOARD
|
项目
|
描述
|
|
Chip
|
Hi 3751 V560
|
|
Max Resolution
|
3840x2160 / 1920x1200
|
|
LCD Inch
|
~82"
|
|
Interface
|
1 channels CVBS, 2 channel HDMI, 2 channel USB(Media decoder 1080P), 1 channel CVBS output , 2x8W amplifer
|
|
Power
|
+12V DC power input, 12W
|
|
Function
|
Android 12 system LCD AD board：Multi-Language OSD , Bitmap LOGO, IR remote control, Flip display, USB HD decoder (H.264) , 3D deinterlace, convenience USB update code, FM audio output support.
Quad-cord A55 1.8G CPU, G52 GPU， 2/3G DDR, 32/64G EMMC. WIFI/Bluetooth FM . Digital HD media player for advertising broadcast .
|
|
LCD Interface
|
V-BY1 4K / LVDS(6/8/10bit) 2ch
|
|
Storage
|
Storage temperature: -40℃- 70℃ humidity: 5%到85%
|
|
Operation
|
Operating temperature: -25℃- 70℃ humidity: 20%到80%
|
|
Dimension
|
160x88x15mm
|
|
Application
|
Android LCD monitor , Android LCD TV, Android Digital Media player.
|
More details, please contact with us.
|
